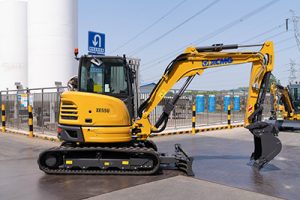

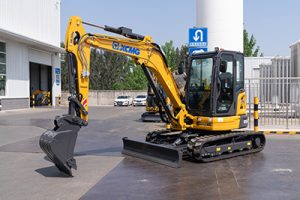

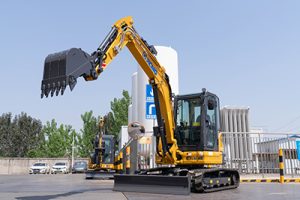

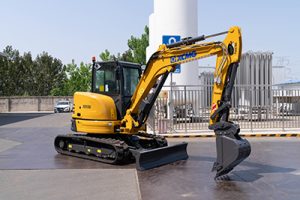

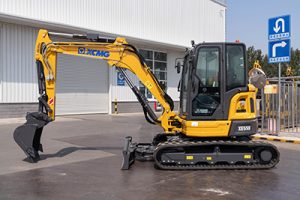

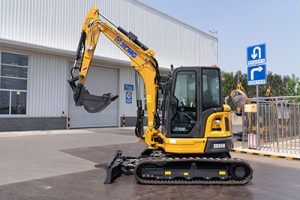

Mini Excavator – Model: XE55U
Explore XCMG’s Mini Excavator Model XE55U, a standout from the E-series, precision-engineered for unmatched strength and reliability. Our Mini Excavator excels even in the harshest conditions, solidifying XCMG’s position as the preferred choice for Mini Excavators in Australia.
Key Specs
Engine
Kubota V2403
Max Speed
4.6 km/h
Dig Depth & Reach
3640 / 6110 mm
Bucket Digging Force
44.5 kN
×
![]()
Product Overview – Mini Excavator – Model: XE55U
Operating Weight
5700 kg
Transport Mass (No Attachments)
5626 kg
Engine
Kubota V2403/EU Stage V
Power
30.7 kw (41.1 hp) / 2200 rpm (ISO 14396)
Max Torque
159.8Nm/1500 rpm
Flow Range
90 LPM
Bucket Digging Force
44.5 kN
Arm Digging Force
24.3 kN
Swing Speed
9.5 RPM
Main Pump Type
Load-sensing Axial-piston Pump with Variable Displacement
Emergency Stops
Included
Buckets
Enquire
Dozer Blade
Included
Quick Hitch
Mechanical
Fuel / Cooling
Diesel / Liquid, Forced Circulation
No of Cylinders
43
Alternator
12V / 60A
Fuel Tank Size
68 L
Noise Level LwA (ISO 6395)
96 dB(A)
Noise Level LpA (ISO 6396)
79 dB(A)
