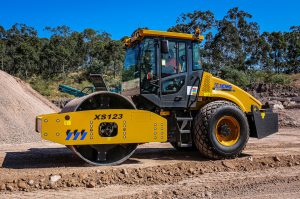

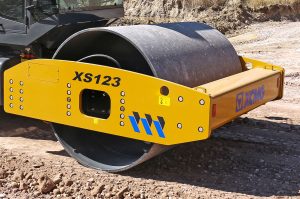

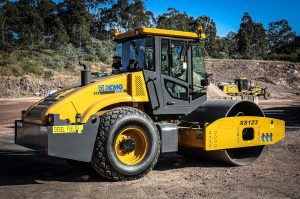

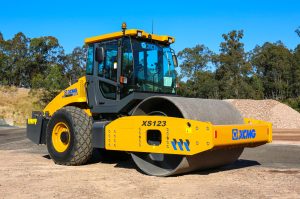

Single Drum Roller – Model: XS123
Explore the XCMG Single Drum Roller – Model: XS123, your ultimate solution for asphalt compaction and construction projects. This reliable and compact roller delivers top-tier performance, making it ideal for your needs. Whether you require a smooth drum roller, dirt packer, or a ride-on vibratory roller, the XS123 ensures outstanding results, cementing its place as the perfect choice for your construction endeavours.
Key Specs
Engine
Cummins QSF3.8
Static Linear Load
31.5 kg
Rated Power
104/139 kW/hp
Op Weight
12000 kg
×
![]()
Product Overview – Single Drum Roller – Model: XS123
Operating Weight
12000 kg
Front Axle Weight
6700 kg
Rear Axle Weight
5300 kg
Static Linear Load (Front /Rear Drum)
31.5 kg/cm
Speed Range
0-5; 0-11.2 km/h
Theoretical Gradeability
45 %
Minimum Turning Radius
4500/6800 mm
Minimum Ground Clearance
393 mm
Wheel Base
3010 mm
Steering Angle
33 Degrees
Oscillation Angle
10 Degrees
Vibrational Frequency
30/35 hz
Nominal Amplitude
1.8/0.9 mm
Exciting Force
280/190 kN
Engine Type
Cummins QSF3.8
Rated Speed
2200 rpm
Engine Rated Power
104/139 kW/hp
Charge Pressure of Drive System
2.4 MPa
Relief Pressure of Drive System
35 MPa
Relief Pressure of Vibration System
30 MPa
Relief Pressure of Steering System
16 MPa
